Features
- Stainless steel end plates and shut offs. - Minimal plastic. - Built for durability and longevity. - Added clean out plate for easy end of season maintenance.
Compatibility
Case, Flexicoil & New Holland. - John Deere 1900 & 1910 ground drive. - John Deere hydraulic drive meter housings. COMING SOON! - Morris 6000, 7000, 8000 series meter housings. COMING SOON!
Above the Meter Housing (Single & Double Chute)

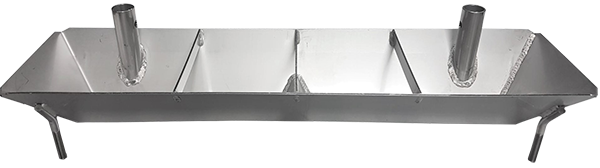

- SS Lower Ladder Bracket Funnel. - Ladder Funnel Seal. - SS Top Meter Mounting plate. - Top Meter Seal. - SS Upper Hardware Kit.

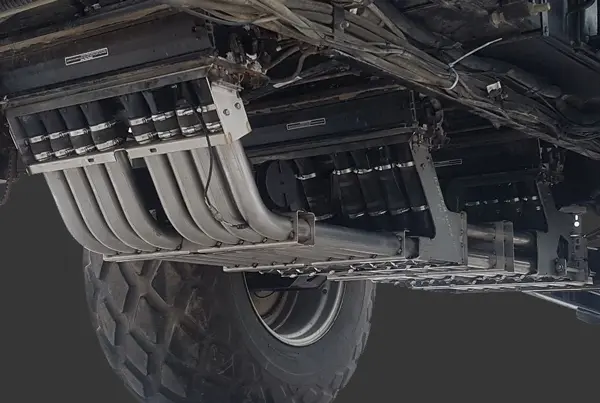

Below the Meter Housing

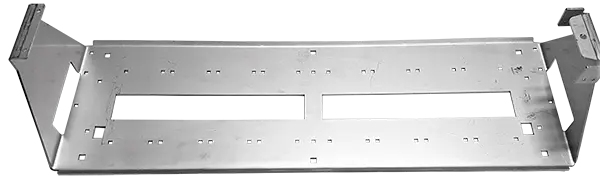

- SS Manifold Bracket, Single Chute. - SS Manifold Bracket, Double Chute. - SS Manifold Side Plate, Single Chute (2 required per meter). - SS Slide Stop Bracket, LH, RH, Double Chute. - SS Bottom Clean-out Plate, Single & Double Chute. - SS Bag Tab Bracket, Single & Double Chute (4 required per meter). - SS Draw Latch, Single & Double Chute (2 required per meter). - Top Manifold Plate Seal, (2 required for single chute, 1 required for double chute). - Manifold Plate & Selector Seal, Double Chute (1 required for double chute). - Side Selector Seal, Double Chute (2 required per meter). - SS Lower Hardware Kit, Single Chute. - SS Lower Hardware Kit, Double Chute. - SS Manifold Bolt Kit, Double Chute, (1 kit required per run).

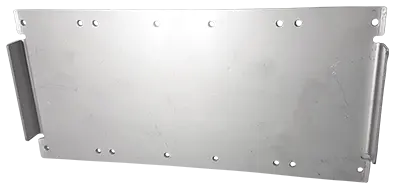

Single Chute Manifold Covers
- SS Manifold Cover, Single Chute, 4 run. - SS Manifold Cover, Single Chute, 6 run. - SS Manifold Cover, Single Chute, 8 run.

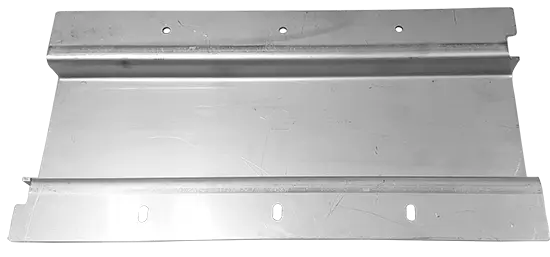

Double Chute Manifold Covers
- SS Manifold Cover, Double Chute, 4 run. - SS Manifold Cover, Double Chute, 6 run. - SS Manifold Cover, Double Chute, 8 run.
Features
304 Stainless Steel system to replace the steel parts. - Precision built. - Parts sold individually or as a complete unit. - Plastic valve bodies. COMING SOON!
Compatibility
- For Case, Flexi Coil & New Holland.

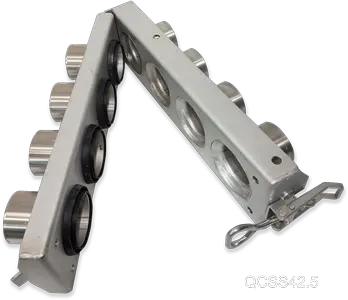

Most durable & easy to use Quick Connector on the market
- Extra heavy-duty latch with tension adjustment. - Adjustable hex head set screws for added adjustment. - Heavy duty component compared to cast or steel products on market. - Complete set includes both halves, seals & latch. - Replacement seals available (QCseal).
Primary Heads
- Our primary heads are only compatible with our primary risers and vice versa. They do NOT fit OEM’s. - Our primary heads and risers can be ordered in 304 Stainless Steel. - Head has removable cap with ¼” rubber seal. - Available in 5" or 6" Inlet Size. - Available in 4 to 8 outlets. - Outlet Size is 2.5".

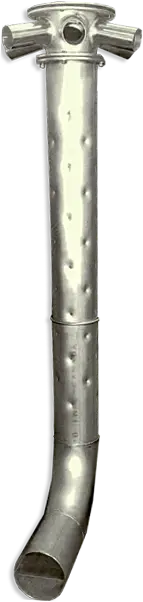

Primary Risers
- 90° bend. - 5” riser is 55” in height. - 6” riser is 60” in height. - Dimpled to assist even distribution. - Available Inlet Size 5" or 6".

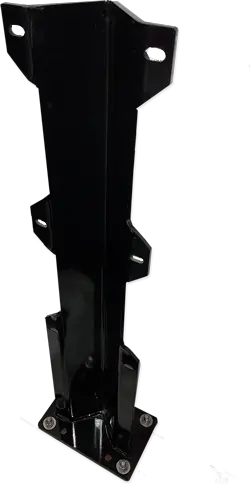

Primary Mount
- Strong & Durable – mild steel only. - Includes U-bolts to suit Primary Riser & 4×4 frame.

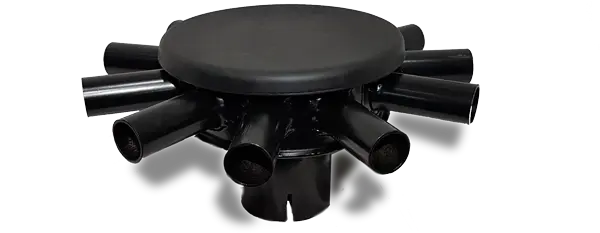

Secondary Heads
- Designed to be the most durable, easiest to use, longest lasting head on the market. - Designed to prevent outlet hose blowout because the hoses are securely fastened to the outside of the outlets. - Easy access to entire head by removable rubber cap. - Gentle on seed design. - 1.25” OD and 1.5” outlet heads also available. - Morris flat fans. COMING SOON! - Includes exhaust clamp and a specially designed, soft on seed rubber cap (RC6) that seals securely to the head that will not blow off but can be easily removed to clear blockages. - All heads & risers are only available in 304 stainless steel. - Heads are electrostatically painted gloss black. - 2.5" Inlet, 1.00" Outlet, 4-15 Outlets. - 2.5" Inlet, 1.25" Outlet, 4-13 Outlets. - 2.5" Inlet, 1.50" Outlet, 4-8 Outlets.
Risers & Mounts
- Dimpling feature on secondary risers help to bring product to center of head to assist with even distribution. - 85° bend to limit seed damage in change of direction of product-flow. - RM2.5 – 2.5” powder coated stand-alone steel mount with hardware to give full flexibility for height and side to side adjustment. - All heads & risers are only available in 304 stainless steel.

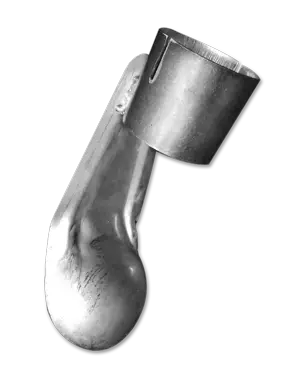

Spreading Heads
- Allows spreading directly from a primary hose. - Spread high product rates & cover crops from primary hose in a cost-effective way. - Manufactured in 304 Stainless Steel.

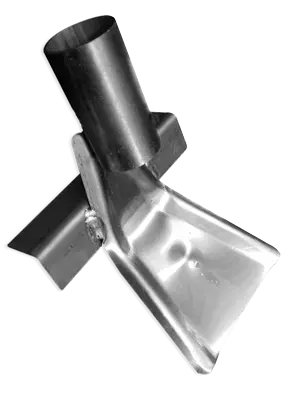

Spreading Plates
- More even distribution from secondary hose for better ground cover. - Manufactured in 304 Stainless Steel.
Lets Get in Touch!
Let us know how we can help make your operation as successful as possible.
