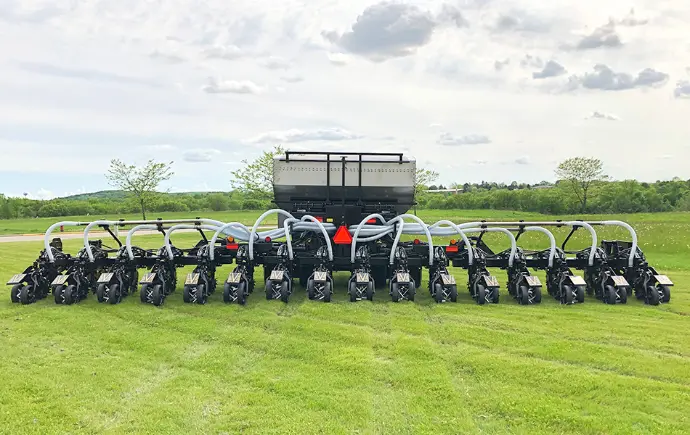

Dawn Black One

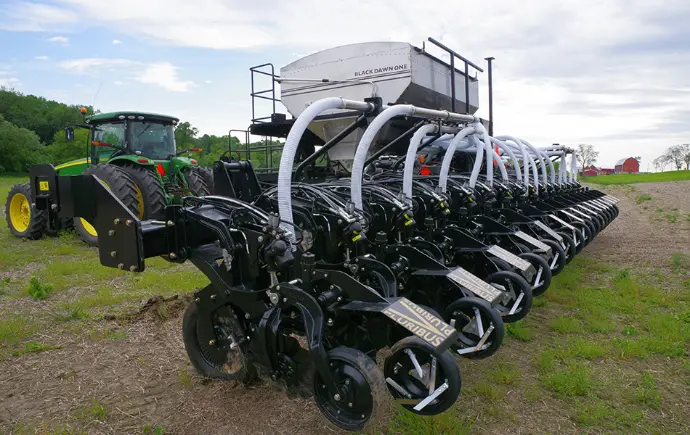

Dawn Black One is a complete pull-type strip-till toolbar and fertilizer delivery system. It features a 9 ton integrated fertilizer cart.
Stainless Fertilizer Delivery
Stainless Steel tubes are mounted directly over top of the toolbar, and terminate at each row for clean and effective fertilizer routing.

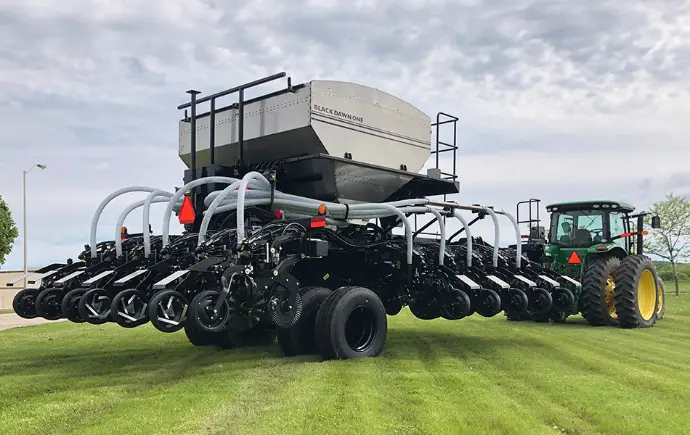

Reduced Transport Height
The Black Dawn One toolbar uniquely packages the axle assembly, and keeps all the primary structure low. This reduces transport height

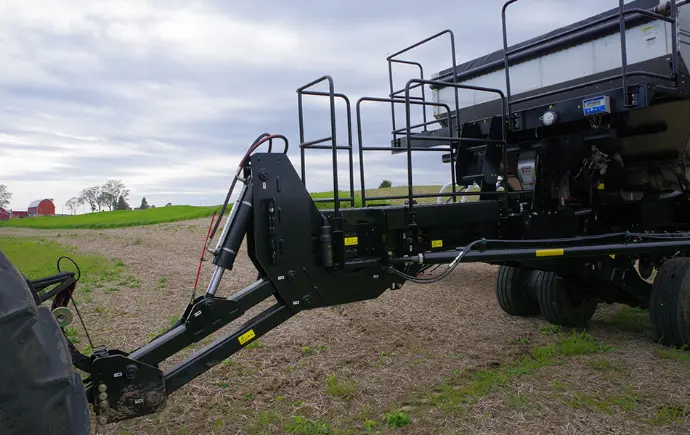

Integrated cat walk
Another unique feature is the visual indicator for tongue height. The cat walk allows easy access to the fertilizer hopper.

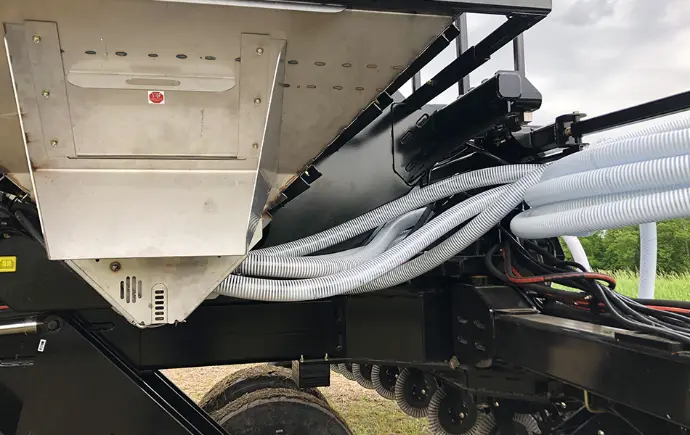

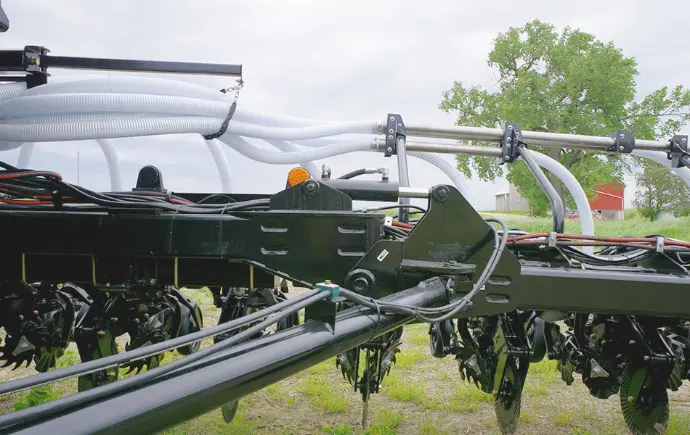

Full Motion of hose routing.
Solving one of the common problems with dry fertilizer systems on pull type toolbars, the motion of hoses folding and unfolding is controlled.

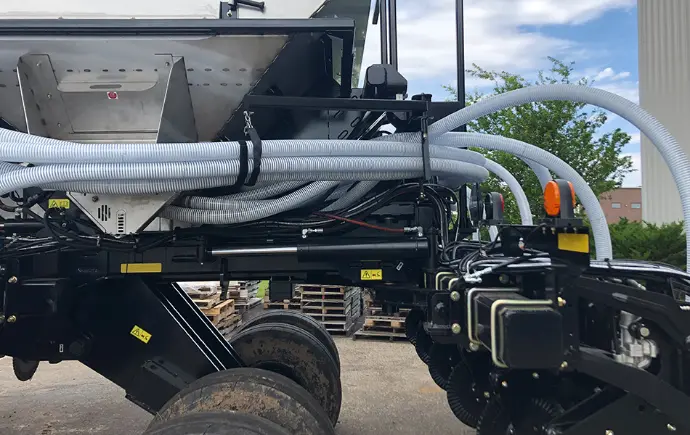

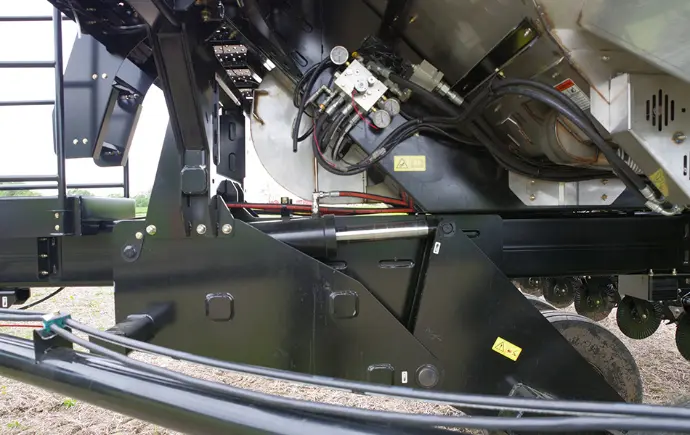

Integrated Fertilizer Chute
The fertilizer chute makes removing unused fertilizer a simple task. Notice the fertilizer tubes suspended near the pivot on a support arm for easy folding.
Active Wing Transfer
Black Dawn One was designed, from day one, to include hydraulic wing weight transfer. A critical element for consistent performance across all rows.
Improved Ground Clearance
Ground clearance can be a real challenge in some conditions. The Black Dawn One has enough to accommodate almost any tough terrain.
Black Dawn One Field Demo
The 16 row should be coupled with a tractor between 250 hp at the low end and 450 hp at the high end. Pulling this bar 10 mph will require 350-400 hp in most cases
Pluribus V

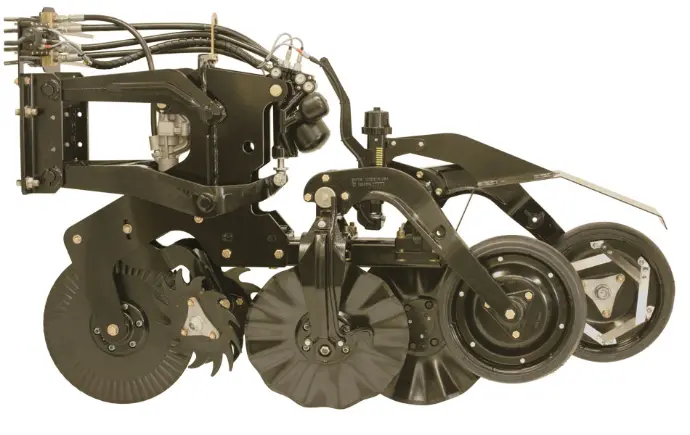

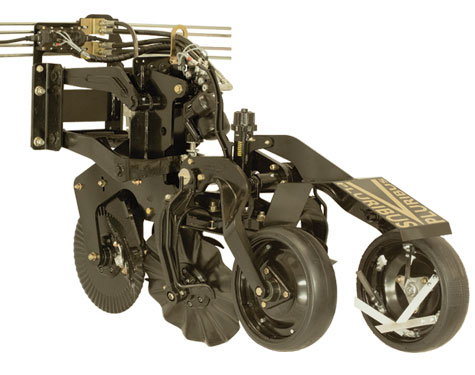

The Pluribus V features Rfx+ row-by-row, automated hydraulic down-force. The system utilizes a strain gauge sensor paired with our new easy screw-adjust depth control. The 3333 will maintain accurate down pressure for any change in soil conditions.
Quick and Effortless Adjustments
A simple acme screw adjust system lets you quickly, and easily set depth on walking tandem gauge wheels. A load cell is located in the stop on the tandem, and gives feedback to the microcontroller that is regulating the hydraulic suspension system. A bracket runs up from the stop to support the load cell cable, and it doubles as a depth indicator by pointing to the yellow graduations marked out on the depth adjustment mount.

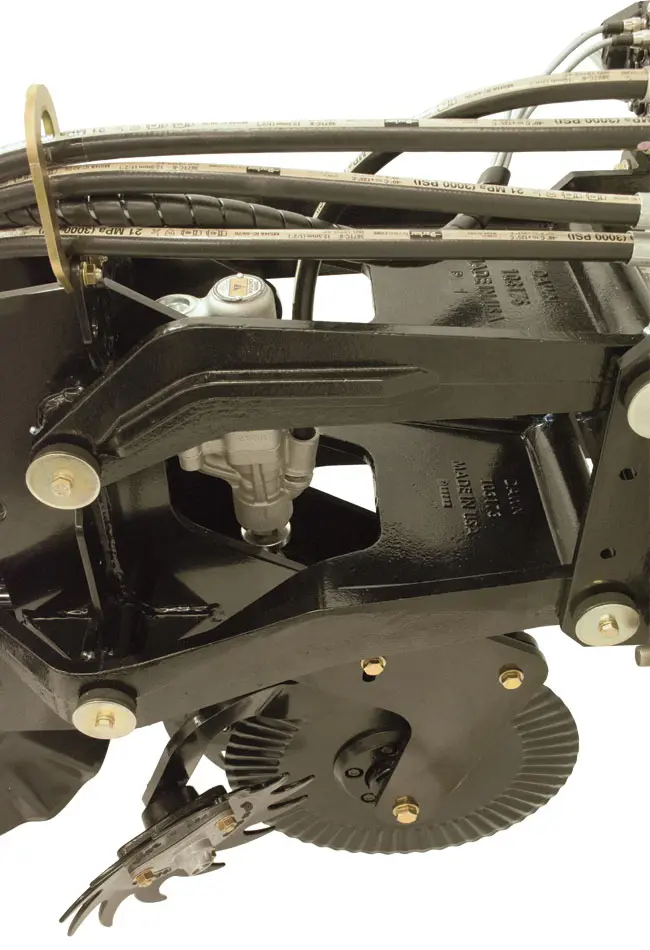

In-cab Control of Row Cleaners
Row crop residue varies as you move through the field. The Pluribus V gives you complete, immediate in-cab control over your integral GFX hydraulic, floating row cleaners. A simple dial controls the GFX cylinders, and allows you to keep moving while making row cleaner adjustments.

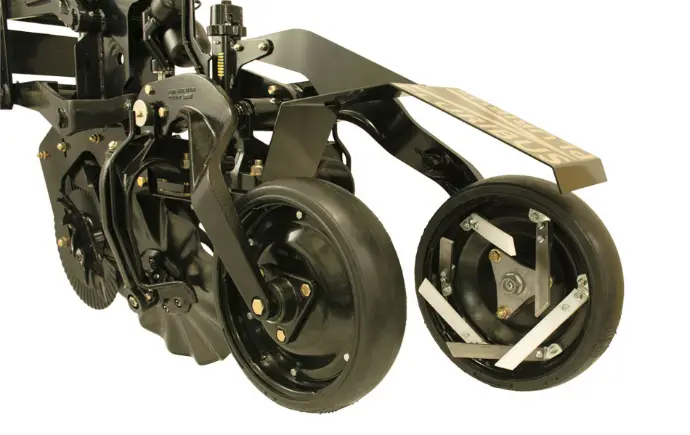

Swirl Gauge Wheels
The standard gauge wheel on the Pluribus V is a heavy-duty rubber wheel and hub. The gauge wheel is equipped with the Dawn Swirl finishing tool. Alternating steel and plastic tines aggressively chop at the soil as it leaves the central coulters. It further crumbles clods, and leaves a 1.5"-2" berm about 8"-10" wide as a seed-bed

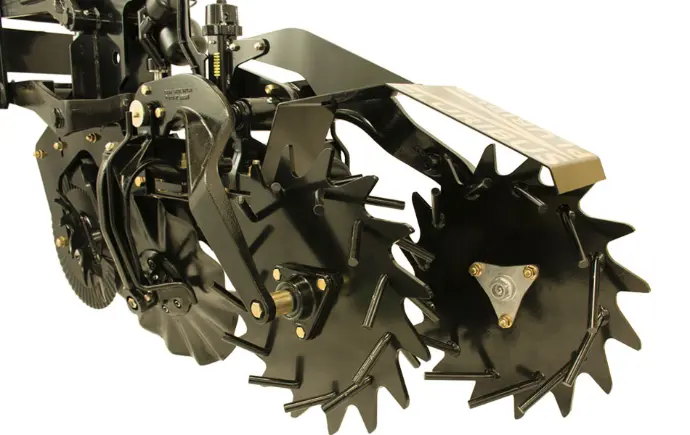

Optional Tine Wheel
Alternative to the standard wheels, we offer a toothed wheel with lateral pulverizers. It chips away at side wall compaction, similar to the Dawn Curvetine, and breaks down clods.

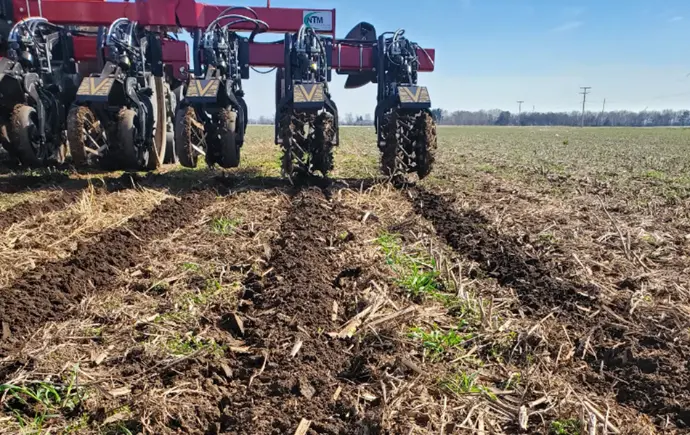

Guage Wheel difference's
Here, the right two rows have the metal basket wheel and the left rows have the rubber wheels with the swirls. The metal basket wheels have teeth that scarf the edge of the strip where the tilled area meets the untilled area. The metal wheels tend to be more effective at breaking up clods in very heavy clay soil types
Liquid Fertilizer Option
Detail view of the liquid fertilizer tubes that can be added to one or both sides of the row. These tubes will produce an approximate 3 x 3 placement relative to the center of the row
Pluribus V Strip Till Gets uplift with Reflex Down Pressure Control
When you are trying to strip till in the spring depth control is everything. The Pluribus V Strip Till row unit is getting uplift and the industry leading Reflex down pressure control system, which allows it to float over wet spots.
